603a1e0a2bd9fd32ad88d9a7 SMA Female Straight Edge PCB Mount Connector //d2pyicwmjx3wii.cloudfront.net/s/59c9e4669bd3e7c70c5f5e6c/603a1e0a2bd9fd32ad88d9a9/873458-1-of-5.jpg

Description

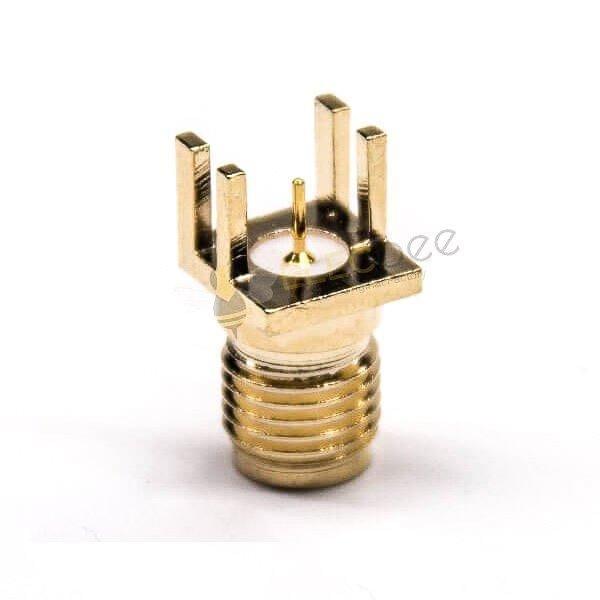

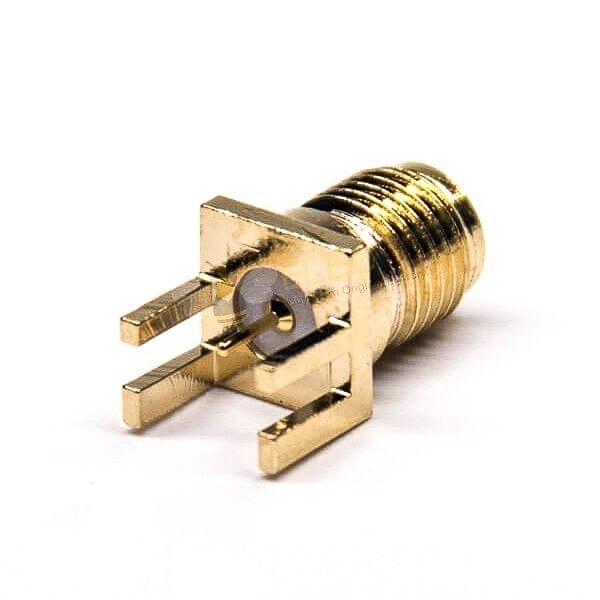

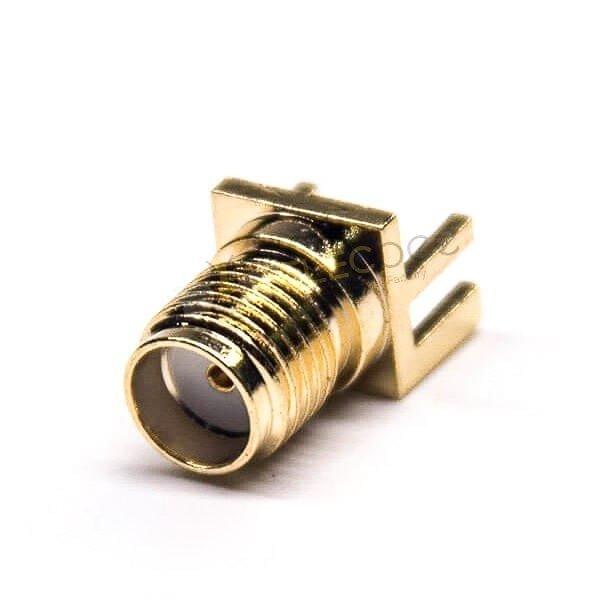

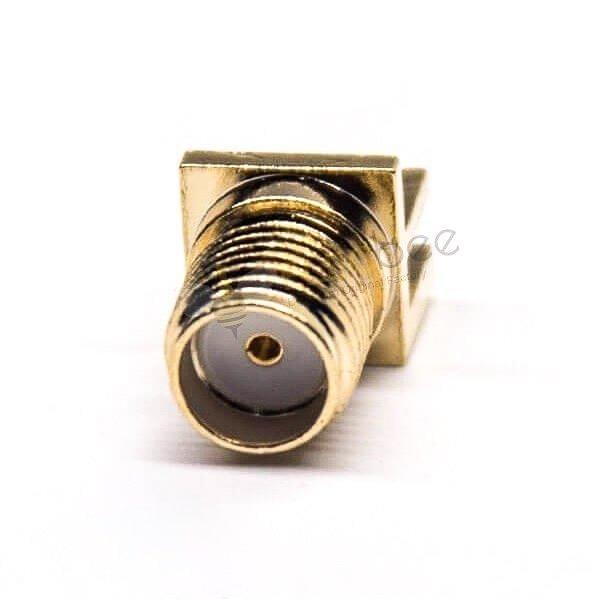

SMA Female Straight Edge PCB Mount Connector

We at Tenet Technetronics offers, a full range of cable mount BNC/TNC and diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors which suits your needs

Appliance:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Medical: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications:Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Features and Specifications:

Features:

  1. SMA Connector,Female,Straight,PCB Connector,Plate Edge Mount,Copper,Gold Plating;
  2. Excellent electrical performance up to 18GHz with low reflection;
  3. Thread type coupling mechanism ensure small loss and high security in compact design;

Specifications:

  1. Impedance:50 ohm
  2. Frequency Range: 0~6 GHz
  3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  4. Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
  5. 750 V rms min. for RG316, RG402
  6. 500v rms min. for RG178
  7. Working Voltage: 500 V rms max. for RG142, RG405
  8. 375 V rms max. for RG316, RG402
  9. 170 V rms max. for RG178
  10. Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
  11. Outer Contact Resistance ≦ 2.0 mΩ  (Milliohms max.)
  12. Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

  1. Coupling: 1/4-36 thread
  2. Contact Retention: 15 in-lbs min.
  3. Coupling nut torque: 30 in-lbs. min.
  4. Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  1. Temprature Range: -55°C ~ +155°C
  2. Vibration: MIL-STD-202 Meth.204
  3. Corrosion resistance: MIL-STD-202 Meth. 101

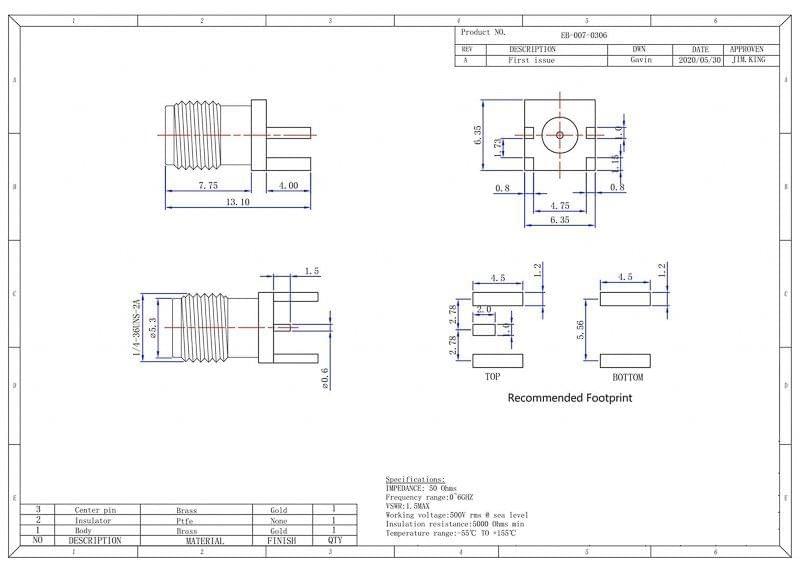

Note: Refer Schematic Image for Dimensional Details


Package Includes:

1 x SMA Female Straight Edge PCB Mount Connector

TT-ROBU-873458
in stock INR 312.7
