66ab72106c18efa8c1419f4f PUI Audio, Inc. 668-AR01232MS-SC12-WP-2-R-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66ab72116c18efa8c1419f82/mfg_ar01232ms-sc12-wp-2-r.jpg

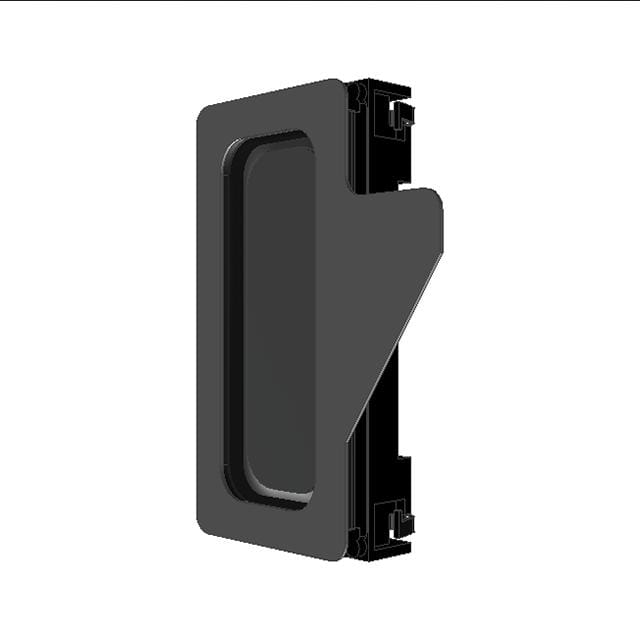

SPEAKR 32OHM 20MW TOP PORT 117DB

Product Attributes:

Series AR
Product Status Active
Technology Magnetic
Type Receiver
Frequency Range 300 Hz ~ 7 kHz
Frequency - Self Resonant 450Hz
Impedance 32 Ohms
Efficiency - dBA 117.00
Efficiency - Testing 10mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 20 mW
Power - Max 30 mW
Port Location Top
Shape Rectangular
Material - Cone Polyetheretherketone (PEEK)
Material - Magnet Nd-Fe-B
Ingress Protection IP67 - Dust Tight, Waterproof
Ratings -
Termination Spring Type
Size / Dimension 0.472" L x 0.236" W (12.00mm x 6.00mm)
Height - Seated (Max) 0.089" (2.25mm)
TT-DKEY-668-AR01232MS-SC12-WP-2-R-ND
in stock INR
PUI Audio, Inc.
1 1
PUI Audio, Inc. 668-AR01232MS-SC12-WP-2-R-ND

PUI Audio, Inc. 668-AR01232MS-SC12-WP-2-R-ND

Sku: TT-DKEY-668-AR01232MS-SC12-WP-2-R-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SPEAKR 32OHM 20MW TOP PORT 117DB

Product Attributes:

Series AR
Product Status Active
Technology Magnetic
Type Receiver
Frequency Range 300 Hz ~ 7 kHz
Frequency - Self Resonant 450Hz
Impedance 32 Ohms
Efficiency - dBA 117.00
Efficiency - Testing 10mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 20 mW
Power - Max 30 mW
Port Location Top
Shape Rectangular
Material - Cone Polyetheretherketone (PEEK)
Material - Magnet Nd-Fe-B
Ingress Protection IP67 - Dust Tight, Waterproof
Ratings -
Termination Spring Type
Size / Dimension 0.472" L x 0.236" W (12.00mm x 6.00mm)
Height - Seated (Max) 0.089" (2.25mm)
