Do you need a 5D navigation button module? Here we have Five Direction Navigation Button Module especially for you. You can use it for MCU AVR Game 5D Rocker Joystick and as an Independent Keyboard for Arduino Joystick Module.
Pin Description:
- COM (Common end): VCC or GND connected to the MCU development board
- UP (Up direction button): Connect to IO pin of the MCU
- DWN (Down direction button): Connect to IO pin of the MCU
- LFT (Left direction button): Connect to IO pin of the MCU
- RHT (Right direction button): Connect to IO pin of the MCU
- MID (Middle direction button): Connect to IO pin of the MCU
- SET (Set button): Connect to IO pin of the MCU
- RST (Reset button): Connect to IO pin of the MCU
Features:
- supports up/down/left/right/middle with extra set and reset button
- 2V-9V wide working voltage
- 7 IO port pinout compatible for most MCU development board
Package Includes:
1 x Five Direction Navigation Button Module
- Home
- MARKETPLACE
- 5D Rocker Joystick for Arduino, MCU, AVR Game

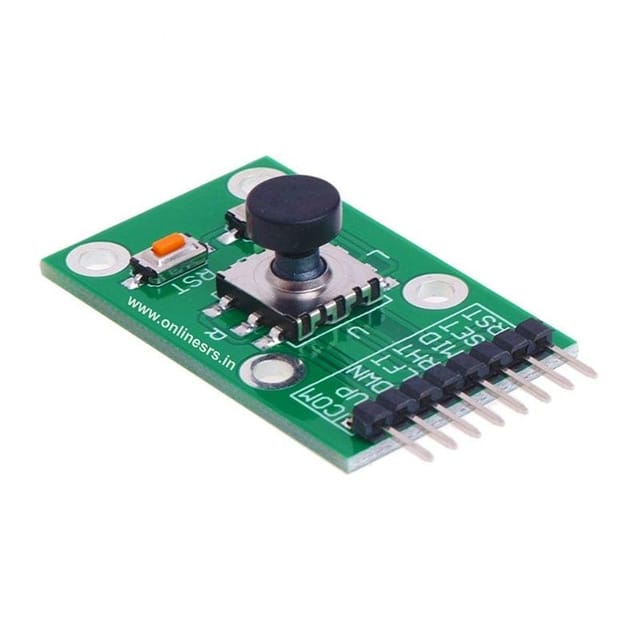

5D Rocker Joystick for Arduino, MCU, AVR Game
SIZE GUIDE
- Shipping in 10-12 Working Days
Description of product
Do you need a 5D navigation button module? Here we have Five Direction Navigation Button Module especially for you. You can use it for MCU AVR Game 5D Rocker Joystick and as an Independent Keyboard for Arduino Joystick Module.
Pin Description:
- COM (Common end): VCC or GND connected to the MCU development board
- UP (Up direction button): Connect to IO pin of the MCU
- DWN (Down direction button): Connect to IO pin of the MCU
- LFT (Left direction button): Connect to IO pin of the MCU
- RHT (Right direction button): Connect to IO pin of the MCU
- MID (Middle direction button): Connect to IO pin of the MCU
- SET (Set button): Connect to IO pin of the MCU
- RST (Reset button): Connect to IO pin of the MCU
Features:
- supports up/down/left/right/middle with extra set and reset button
- 2V-9V wide working voltage
- 7 IO port pinout compatible for most MCU development board
Package Includes:
1 x Five Direction Navigation Button Module
