Chemi-Con 565-EMZR500ARA221MHA0GTR-ND,565-EMZR500ARA221MHA0GCT-ND,565-EMZR500ARA221MHA0GDKR-ND
Sku: TT-DKEY-565-EMZR500ARA221MHA0GTR-ND,565-EMZR500ARA221MHA0GCT-ND,565-EMZR500ARA221MHA0GDKR-ND
₹120.85
Features
- Shipping in 10-12 Working Days
Description of product

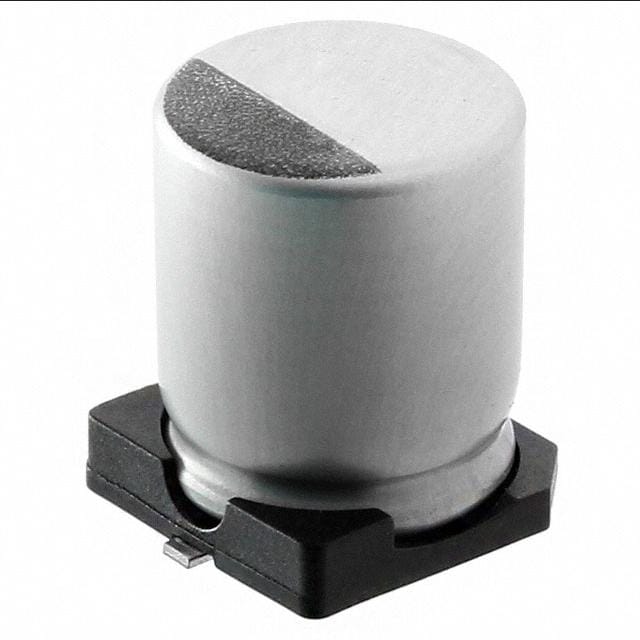

CAP ALUM 220UF 20% 50V SMD
Product Attributes:
| Series | Alchip™- MZR |
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 180mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | - |
