Chemi-Con 565-EMZR250ARA221MF80GTR-ND,565-EMZR250ARA221MF80GCT-ND,565-EMZR250ARA221MF80GDKR-ND
Sku: TT-DKEY-565-EMZR250ARA221MF80GTR-ND,565-EMZR250ARA221MF80GCT-ND,565-EMZR250ARA221MF80GDKR-ND
₹72.8
Features
- Shipping in 10-12 Working Days
Description of product

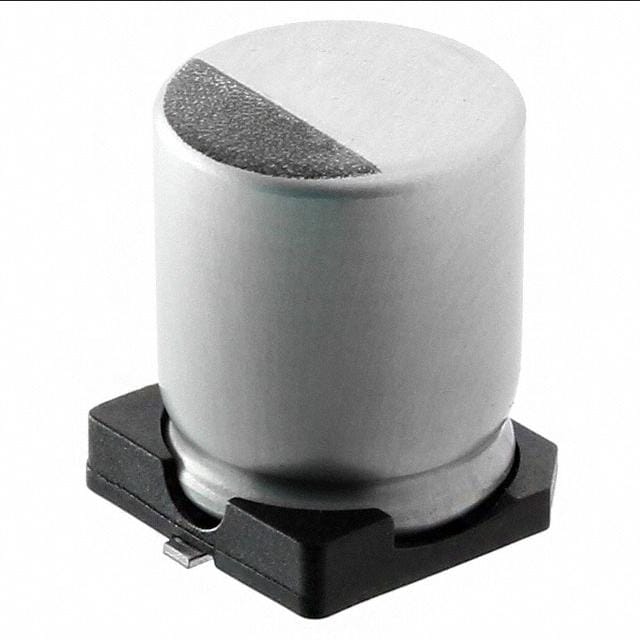

CAP ALUM 220UF 20% 25V SMD
Product Attributes:
| Series | Alchip™- MZR |
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
