67dbab2b8d6aa0003efa3b30 Chemi-Con 565-EMHS250ARA102MKE0STR-ND,565-EMHS250ARA102MKE0SCT-ND,565-EMHS250ARA102MKE0SDKR-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dbab2d8d6aa0003efa3b33/mfg_alchip-mhs-series.jpg

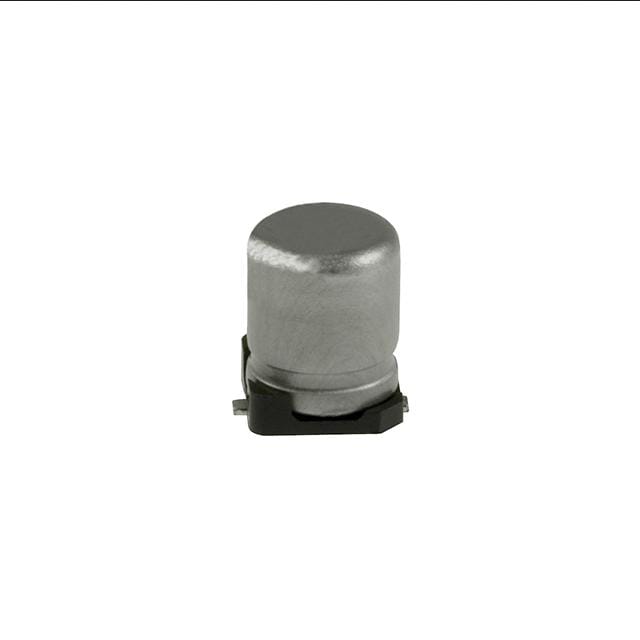

CAP ALUM 1000UF 20% 25V SMD

Product Attributes:

SeriesAlchip™- MHS
Product StatusActive
Capacitance1000 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)87mOhm @ 100kHz
Lifetime @ Temp.5000 Hrs @ 125°C
Operating Temperature-40°C ~ 125°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency636 mA @ 120 Hz
Lead Spacing-
Size / Dimension0.492" Dia (12.50mm)
Height - Seated (Max)0.551" (14.00mm)
Surface Mount Land Size0.539" L x 0.512" W (13.70mm x 13.00mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency1.06 A @ 100 kHz
Impedance-
TT-DKEY-565-EMHS250ARA102MKE0STR-ND,565-EMHS250ARA102MKE0SCT-ND,565-EMHS250ARA102MKE0SDKR-ND
in stockINR 164.528
Chemi-Con
1 1
Chemi-Con 565-EMHS250ARA102MKE0STR-ND,565-EMHS250ARA102MKE0SCT-ND,565-EMHS250ARA102MKE0SDKR-ND

Chemi-Con 565-EMHS250ARA102MKE0STR-ND,565-EMHS250ARA102MKE0SCT-ND,565-EMHS250ARA102MKE0SDKR-ND

Sku: TT-DKEY-565-EMHS250ARA102MKE0STR-ND,565-EMHS250ARA102MKE0SCT-ND,565-EMHS250ARA102MKE0SDKR-ND
Be the first to review this product
₹164.53
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 1000UF 20% 25V SMD

Product Attributes:

SeriesAlchip™- MHS
Product StatusActive
Capacitance1000 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)87mOhm @ 100kHz
Lifetime @ Temp.5000 Hrs @ 125°C
Operating Temperature-40°C ~ 125°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency636 mA @ 120 Hz
Lead Spacing-
Size / Dimension0.492" Dia (12.50mm)
Height - Seated (Max)0.551" (14.00mm)
Surface Mount Land Size0.539" L x 0.512" W (13.70mm x 13.00mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency1.06 A @ 100 kHz
Impedance-
