Chemi-Con 565-EMHS101ARA111MKE0STR-ND,565-EMHS101ARA111MKE0SCT-ND,565-EMHS101ARA111MKE0SDKR-ND
Sku: TT-DKEY-565-EMHS101ARA111MKE0STR-ND,565-EMHS101ARA111MKE0SCT-ND,565-EMHS101ARA111MKE0SDKR-ND
₹174.72
Features
- Shipping in 10-12 Working Days
Description of product

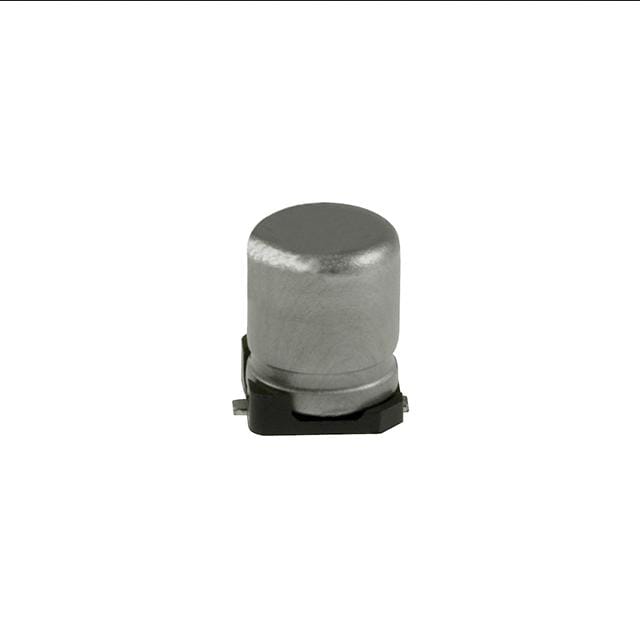

CAP ALUM 110UF 20% 100V SMD
Product Attributes:
| Series | Alchip™- MHS |
| Product Status | Active |
| Capacitance | 110 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 170mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 368 mA @ 120 Hz |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.539" L x 0.512" W (13.70mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 920 mA @ 100 kHz |
| Impedance | - |
