612346b0505cceb3b9623ab4 Pontiac Coil Inc. 527-1033-ND //d2pyicwmjx3wii.cloudfront.net/s/59c9e4669bd3e7c70c5f5e6c/612346b2505cceb3b9623b0b/webp/f0492a.jpg

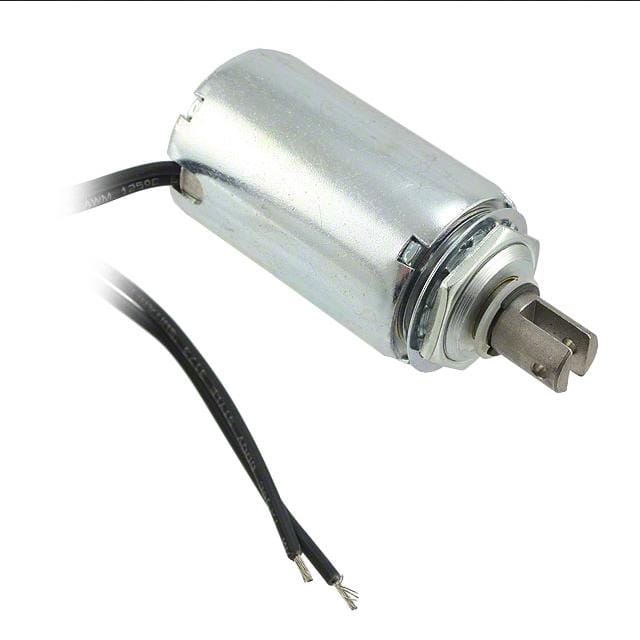

SOLENOID PULL INTERMITTENT 12V

Product Attributes:

SeriesL-15-2
Part StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleIntermittent
Voltage - Rated12VDC
Stroke Length1.250" (31.75mm)
Power (Watts)60 W
DC Resistance (DCR)2.2Ohm
Bushing Thread1-27 UNS-2A
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension1.490" Dia x 2.380" L (37.85mm x 60.45mm)
Diameter - Shaft0.500" (12.70mm)
Shaft DetailClevis
TT-DKEY-527-1033-ND
in stockINR 7515.402664
Pontiac Coil Inc.
1 1
Pontiac Coil Inc. 527-1033-ND

Pontiac Coil Inc. 527-1033-ND

Sku: TT-DKEY-527-1033-ND
₹7,515.4


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SOLENOID PULL INTERMITTENT 12V

Product Attributes:

SeriesL-15-2
Part StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleIntermittent
Voltage - Rated12VDC
Stroke Length1.250" (31.75mm)
Power (Watts)60 W
DC Resistance (DCR)2.2Ohm
Bushing Thread1-27 UNS-2A
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension1.490" Dia x 2.380" L (37.85mm x 60.45mm)
Diameter - Shaft0.500" (12.70mm)
Shaft DetailClevis
