612346b0aefc19b36a1c05cf Pontiac Coil Inc. 527-1030-ND //cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/612346b2aefc19b36a1c061d/webp/f0483a.jpg

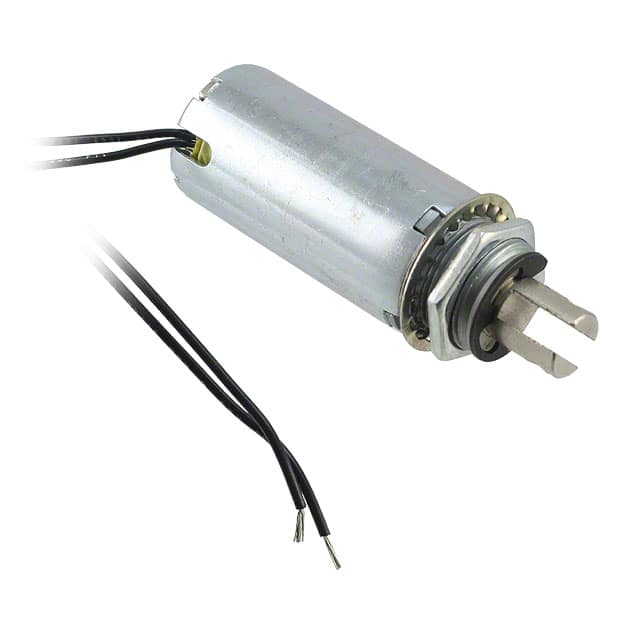

SOLENOID PULL CONTINUOUS 24V

Product Attributes:

SeriesL-10-2
Part StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleContinuous
Voltage - Rated24VDC
Stroke Length0.750" (19.05mm)
Power (Watts)8 W
DC Resistance (DCR)72Ohm
Bushing Thread3/4-24 UNS-2A
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension0.990" Dia x 2.010" L (25.15mm x 51.05mm)
Diameter - Shaft0.437" (11.10mm)
Shaft DetailClevis
TT-DKEY-527-1030-ND
in stockINR 5212.472122
Pontiac Coil Inc.
1 1
Pontiac Coil Inc. 527-1030-ND

Pontiac Coil Inc. 527-1030-ND

Sku: TT-DKEY-527-1030-ND
₹5,212.47


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SOLENOID PULL CONTINUOUS 24V

Product Attributes:

SeriesL-10-2
Part StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleContinuous
Voltage - Rated24VDC
Stroke Length0.750" (19.05mm)
Power (Watts)8 W
DC Resistance (DCR)72Ohm
Bushing Thread3/4-24 UNS-2A
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension0.990" Dia x 2.010" L (25.15mm x 51.05mm)
Diameter - Shaft0.437" (11.10mm)
Shaft DetailClevis
