6405d648b8fc32a585399e85 Sumida America Inc. 527-1018-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405d649b8fc32a585399ea4/f0453a.jpg

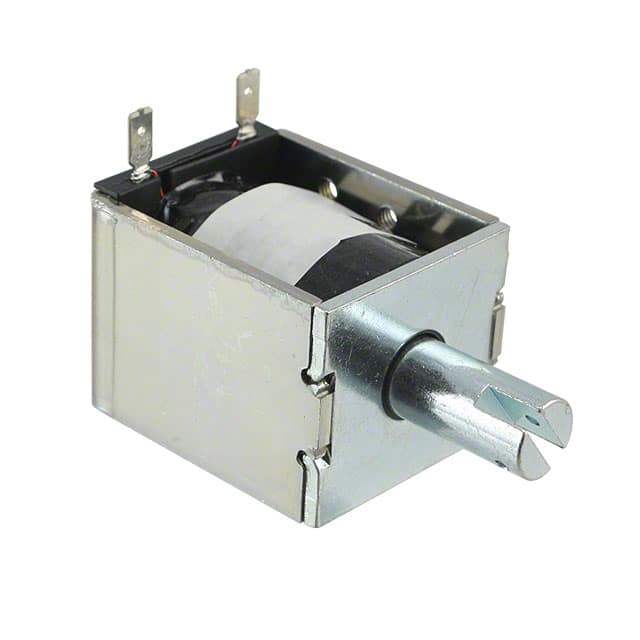

SOLENOID PULL CONTINUOUS 24V

Product Attributes:

SeriesL-04
Product StatusActive
TechnologyElectromechanical
TypeOpen Frame (Pull)
Duty CycleContinuous
Voltage - Rated24VDC
Stroke Length1.000" (25.40mm)
Power (Watts)11 W
DC Resistance (DCR)52Ohm
Bushing Thread-
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.187" (4.7mm)
Size / Dimension2.020" L x 1.440" W x 1.630" H (51.31mm x 36.58mm x 41.40mm)
Diameter - Shaft0.500" (12.70mm)
Shaft DetailClevis
TT-DKEY-527-1018-ND
in stockINR 3968.7749999999996
Sumida America Inc.
1 1
Sumida America Inc. 527-1018-ND

Sumida America Inc. 527-1018-ND

Sku: TT-DKEY-527-1018-ND
₹3,968.77


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SOLENOID PULL CONTINUOUS 24V

Product Attributes:

SeriesL-04
Product StatusActive
TechnologyElectromechanical
TypeOpen Frame (Pull)
Duty CycleContinuous
Voltage - Rated24VDC
Stroke Length1.000" (25.40mm)
Power (Watts)11 W
DC Resistance (DCR)52Ohm
Bushing Thread-
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.187" (4.7mm)
Size / Dimension2.020" L x 1.440" W x 1.630" H (51.31mm x 36.58mm x 41.40mm)
Diameter - Shaft0.500" (12.70mm)
Shaft DetailClevis
