- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Stepper Motors
- Analog Devices Inc./Maxim Integrated 505-PD86-3-1260-TMCL-ND

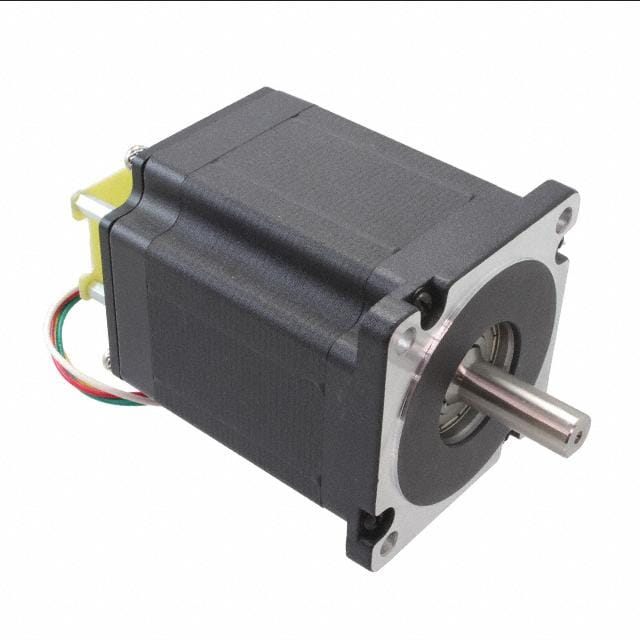

Analog Devices Inc./Maxim Integrated 505-PD86-3-1260-TMCL-ND
Sku:
TT-DKEY-505-PD86-3-1260-TMCL-ND
₹77,575.68
SIZE GUIDE
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
PANDRIVE NEMA34, 48V, 7.0NM
Product Attributes:
| Series | PANdrive™ |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 48VDC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
| Size / Dimension | Square - 3.382" x 3.382" (85.90mm x 85.90mm) |
| Diameter - Shaft | 0.500" (12.70mm) |
| Length - Shaft and Bearing | 1.310" (33.27mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | - |
| Coil Resistance | 0.45 Ohms |
| Features | Integrated Controller, Flatted Shaft |
| Current Rating (Amps) | 5.5 A |
| NEMA Frame Size | 34 |
