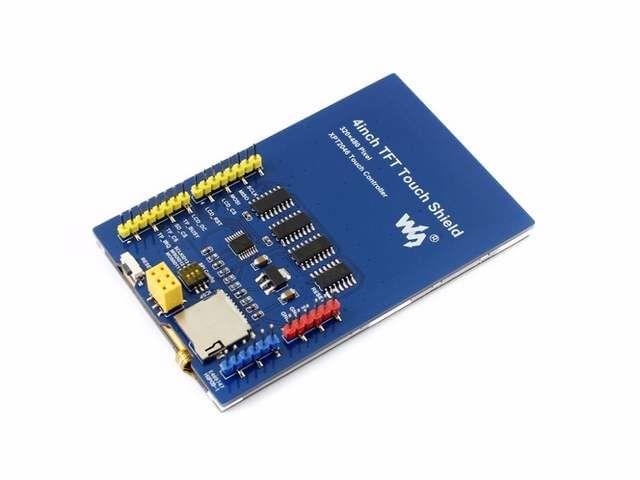

4inch Touch LCD Shield for Arduino

Description of product

DESCRIPTION
4inch Touch LCD Shield for Arduino

Features

  • Resistive touch screen TFT LCD, 4inch, 480x320 resolution
  • Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
  • PWM backlight control, allows to adjust the backlight to a comfortable level
  • Micro SD slot, provides an easy way to store photos for displaying
  • Controlled via SPI, only a few Arduino pins are used
  • Comes with STM32 and Arduino examples, convenient for porting

Key Parameters

LCD Type TFT
LCD Interface SPI
LCD Controller ILI9486
Touch Screen Type Resistive
Touch Screen Controller XPT2046
Colors RGB, 65K colors
Resolution 480x320 (Pixel)
Aspect Ratio 8:5
I/O Voltage 3.3V/5V

Interface

Symbol Arduino / NUCLEO PIN Description
5V 5V 5V power input
GND GND Ground
SCLK D13 SPI clock
MISO D12 SPI data input
MOSI D11 SPI data output
LCD_CS D10 LCD chip select
LCD_BL D9 LCD backlight
LCD_RST D8 LCD reset
LCD_DC D7 LCD data/command selection
TP_BUSY D6 Touch panel busy
SD_CS D5 Micro SD card chip select
TP_CS D4 Touch panel chip select
TP_IRQ D3 Touch panel interrupt

External Dimension

4inch-TFT-Touch-Shield-dimension
