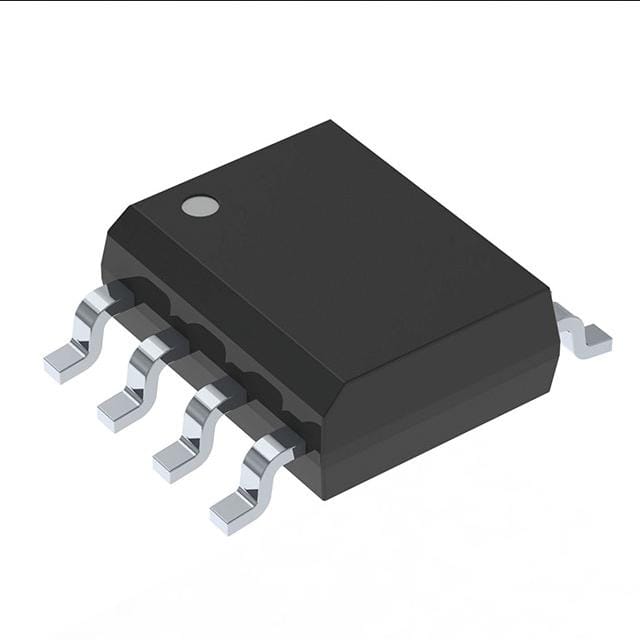

Infineon Technologies 448-IRF7341GTRPBFTR-ND,448-IRF7341GTRPBFCT-ND,448-IRF7341GTRPBFDKR-ND
Sku: TT-DKEY-448-IRF7341GTRPBFTR-ND,448-IRF7341GTRPBFCT-ND,448-IRF7341GTRPBFDKR-ND
₹259.2
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2N-CH 55V 5.1A 8SO
Product Attributes:
| Series | HEXFET® |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25°C | 5.1A |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 5.1A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 44nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 780pF @ 25V |
| Power - Max | 2.4W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Grade | - |
| Qualification | - |
