Infineon Technologies 448-BSG0810NDIATMA1TR-ND,448-BSG0810NDIATMA1CT-ND,448-BSG0810NDIATMA1DKR-ND
Sku: TT-DKEY-448-BSG0810NDIATMA1TR-ND,448-BSG0810NDIATMA1CT-ND,448-BSG0810NDIATMA1DKR-ND
₹368.64
Features
- Shipping in 10-12 Working Days
Description of product

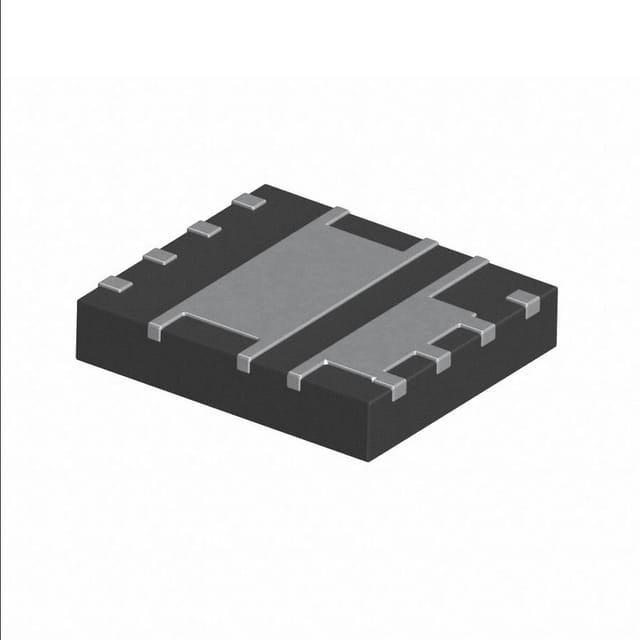

MOSFET 2N-CH 25V 19A/39A TISON8
Product Attributes:
| Series | OptiMOS™ |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 19A, 39A |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1040pF @ 12V |
| Power - Max | 2.5W |
| Operating Temperature | -55°C ~ 155°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | PG-TISON-8 |
| Grade | - |
| Qualification | - |
