Description of product

Description

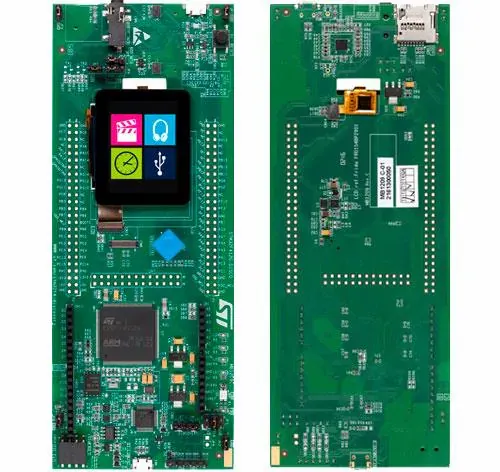

STM32F412G-DISCO Discovery Kit allows users to easily develop applications with the STM32F412 high-performance MCU with ARM Cortex-M4 core. The Discovery kit combines STM32F412 features with 1.54 inch 240x240 pixel TFT color LCD with touchscreen, LEDs, and Wakeup button. The kit also includes I2S Audio Codec, MEMS microphones, USB OTG FS, Quad-SPI NOR Flash memory, MicroSD card connector.

An embedded ST-LINK/V2-1 debugger/programmer is included; specialized add-on boards can be connected thanks to the Arduino Uno or to the expansion connectors.

Key features

  • STM32F412ZGT6 microcontroller featuring 1 Mbyte of Flash memory and 256 Kbytes of RAM in an LQFP144 package
  • On-board ST-LINK/V2-1 SWD debugger supporting USB re-enumeration capability:
    • USB virtual COM port
    • mass storage
    • debug port
  • 1.54 inch 240x240 pixel TFT color LCD with parallel interface and capacitive touchscreen
  • I2S Audio CODEC, with a stereo headset jack, including analog microphone input and a loudspeaker output
  • Stereo digital MEMS microphones
  • MicroSD™ card connector extension
  • I2C extension connector
  • 128 Mbit Quad-SPI Nor Flash
  • Reset button and Joystick
  • Four color user LEDs.
  • USB OTG FS with Micro-AB connector
  • Four power supply options:
    • ST-LINK/V2-1 USB connector
    • User USB FS connector
    • VIN from Arduino™ connectors
    • + 5 V from Arduino™ connectors
  • Two power supplies for MCU: 2.0 V and 3.3 V
  • Compatible with Arduino™ Uno revision 3 connectors
  • Extension connector for direct access to various features of STM32F412ZGT6 MCU
  • Comprehensive free software including a variety of examples, part of STM32Cube package
