32F0308DISCOVERY
Sku: TT-STB-STM32F0308-DISCO
₹1,071.44
Features
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d4a9eb0380e61350b93a43a/images/5d4a9eb0380e61350b93a43b/5d4a9e25380e61350b938ce4/5d4a9e25380e61350b938ce4.jpg
Description of product
Description

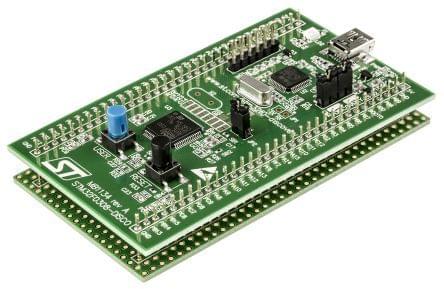

32F0308DISCOVERY Discovery Kit helps discover the STM32 F030 Value Line Cortex M0 features and to develop applications easily. The kit includes everything required for beginners and experienced users to get started quickly.
Based on the STM32F030R8T6, an STM32 F0 series 32-bit ARM Cortex microcontroller, the kit includes an ST-LINK/V2 embedded debug tool, LEDs, push-buttons, and a prototyping board for easy connection of additional components and modules.
Key features
- STM32F030R8T6 microcontroller featuring 64 KB of Flash memory, 8 KB of RAM in an LQFP64 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 5 V supply voltage
- External application power supply: 3 V and 5 V
- Four LEDs:
- LD1 (red) for 3.3 V power-on
- LD2 (red/green) for USB communication
- LD3 (green) for PC9 output
- LD4 (blue) for PC8 output
- Two push-buttons (user and reset)
- Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing
- An additional board is provided which can be connected to the extension connector for even easier prototyping and probing
- Comprehensive free software including a variety of examples, part of STM32CubeF0 package or STSW-STM32140 for legacy Standard Libraries usage
