6405df15658aac0be97e1f1a ISL Products International 2685-MOT-IG-30GM1:189-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405df16658aac0be97e1f42/mfg_mot-ig-30gm-1-189.jpg

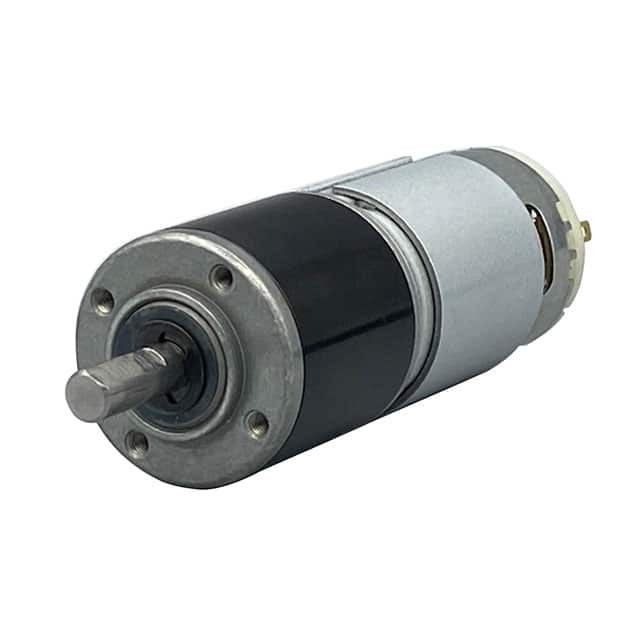

30MM PLANETARY GEAR MOTOR - BRUS

Product Attributes:

Series -
Product Status Active
Type DC Motor
Function Gearmotor
Motor Type Brushed
Voltage - Rated 12VDC
RPM 33 RPM
Torque - Rated (oz-in / mNm) 152.76 / 1078.73
Power - Rated 3.93W
Encoder Type -
Size / Dimension Round - 1.181" Dia (30.00mm)
Diameter - Shaft 0.236" (6.00mm)
Length - Shaft and Bearing 4.594" (116.70mm)
Mounting Hole Spacing 0.945" (24.00mm)
Termination Style -
Features -
Gear Reduction Ratio 189
Torque - Max Momentary (oz-in / mNm) 416.62 / 2942.00
Operating Temperature -
TT-DKEY-2685-MOT-IG-30GM1:189-ND
in stock INR 17646.75
ISL Products International
1 1

ISL Products International 2685-MOT-IG-30GM1:189-ND

Sku: TT-DKEY-2685-MOT-IG-30GM1:189-ND
₹17,646.75


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

30MM PLANETARY GEAR MOTOR - BRUS

Product Attributes:

Series -
Product Status Active
Type DC Motor
Function Gearmotor
Motor Type Brushed
Voltage - Rated 12VDC
RPM 33 RPM
Torque - Rated (oz-in / mNm) 152.76 / 1078.73
Power - Rated 3.93W
Encoder Type -
Size / Dimension Round - 1.181" Dia (30.00mm)
Diameter - Shaft 0.236" (6.00mm)
Length - Shaft and Bearing 4.594" (116.70mm)
Mounting Hole Spacing 0.945" (24.00mm)
Termination Style -
Features -
Gear Reduction Ratio 189
Torque - Max Momentary (oz-in / mNm) 416.62 / 2942.00
Operating Temperature -
