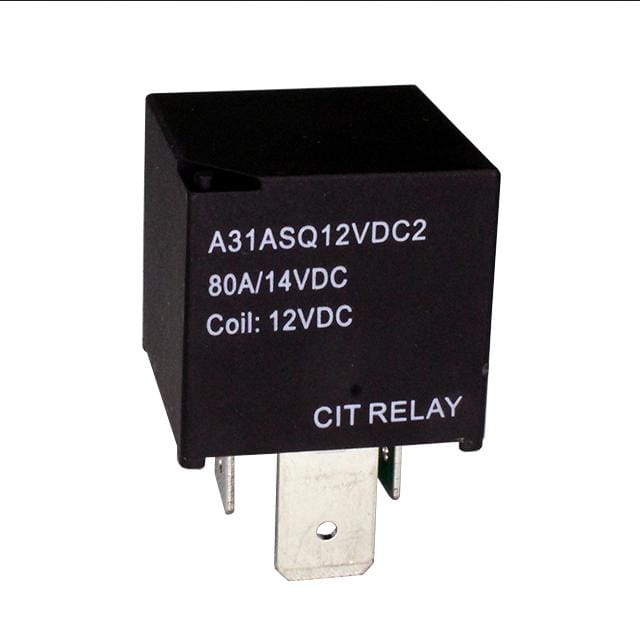

613854354a948676643133fd CIT Relay and Switch 2449-A31ASQ12VDC2-ND https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/613854364a9486766431342a/webp/mfg_a31asq12vdc2.jpg

RELAY AUTO HD SPST 12VDC QC

Product Attributes:

Series A3
Part Status Active
Coil Type Non Latching
Coil Current 150 mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 80 A
Switching Voltage 75VDC - Max
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 7 ms
Release Time 5 ms
Features Sealed - Fully
Mounting Type Socketable
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature -40°C ~ 125°C
TT-DKEY-2449-A31ASQ12VDC2-ND
in stock INR 408.332
CIT Relay and Switch
1 1

CIT Relay and Switch 2449-A31ASQ12VDC2-ND

Sku: TT-DKEY-2449-A31ASQ12VDC2-ND
₹408.33


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

RELAY AUTO HD SPST 12VDC QC

Product Attributes:

Series A3
Part Status Active
Coil Type Non Latching
Coil Current 150 mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 80 A
Switching Voltage 75VDC - Max
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 7 ms
Release Time 5 ms
Features Sealed - Fully
Mounting Type Socketable
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature -40°C ~ 125°C
