+918023404924 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.settings/5256837ccc4abf1d39000001/59dafe26aef6e1d20402c4c3-480x480.png" [email protected] 667aa8f7c0666108fa7bb8ff Sanyo Denki SanMotion Products 2300-SM2862-5252-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/667aa8f8c0666108fa7bb93c/sm2862-5252.jpg
TT-DKEY-2300-SM2862-5252-ND
STEP, F2, SQ.86, 1.8, HALF INCH
Product Attributes:
| Series | - |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 100VAC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 906.3 / 6400 |
| Size / Dimension | Square - 3.386" x 3.386" (86.00mm x 86.00mm) |
| Diameter - Shaft | 0.500" (12.70mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 0.36 Ohms |
| Features | - |
| Current Rating (Amps) | 6 A |
| NEMA Frame Size | 34 |
in stockINR
Sanyo Denki SanMotion Products
1 1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Stepper Motors
- Sanyo Denki SanMotion Products 2300-SM2862-5252-ND

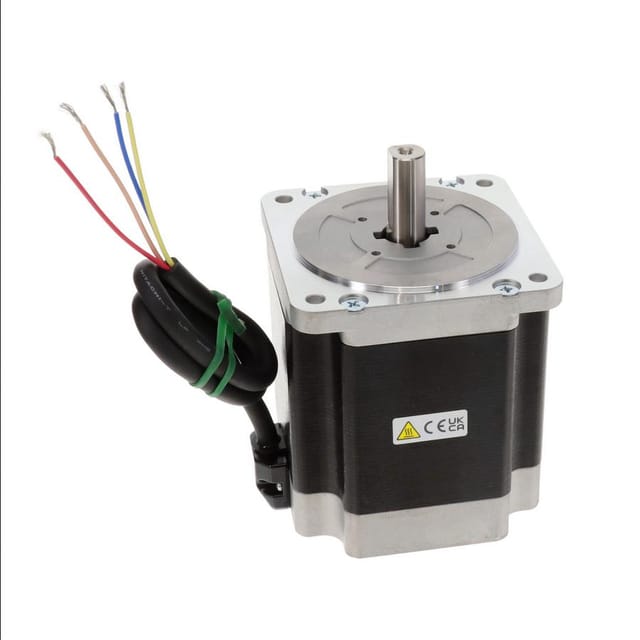

Sanyo Denki SanMotion Products 2300-SM2862-5252-ND
Sku: TT-DKEY-2300-SM2862-5252-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By: tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEP, F2, SQ.86, 1.8, HALF INCH
Product Attributes:
| Series | - |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 100VAC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 906.3 / 6400 |
| Size / Dimension | Square - 3.386" x 3.386" (86.00mm x 86.00mm) |
| Diameter - Shaft | 0.500" (12.70mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 0.36 Ohms |
| Features | - |
| Current Rating (Amps) | 6 A |
| NEMA Frame Size | 34 |
