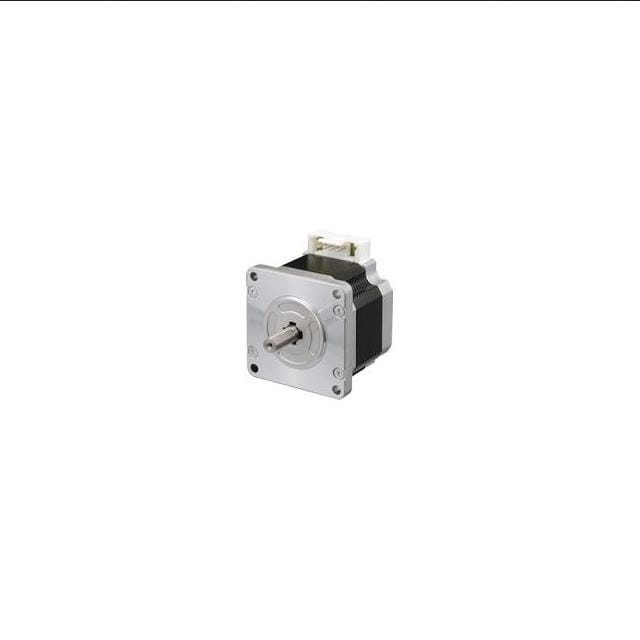

6123487baefc19b36a1c6761 Sanyo Denki SanMotion Products 2300-103H7821-1760-ND //cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/6123487caefc19b36a1c67a2/webp/mfg_103h7821-1730.jpg

STEP, F2, SQ.60, 1.8, NEMA, , BI

Product Attributes:

Series H
Part Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 4 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 124.6 / 880
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size 23
Diameter - Shaft 0.315" (8.00mm)
Length - Shaft and Bearing 0.811" (20.60mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Operating Temperature -10°C ~ 50°C
Coil Resistance 0.35 Ohms
Features -
TT-DKEY-2300-103H7821-1760-ND
in stock INR 6130.408658
Sanyo Denki SanMotion Products
1 1

Sanyo Denki SanMotion Products 2300-103H7821-1760-ND

Sku: TT-DKEY-2300-103H7821-1760-ND
₹6,130.41


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEP, F2, SQ.60, 1.8, NEMA, , BI

Product Attributes:

Series H
Part Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 4 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 124.6 / 880
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size 23
Diameter - Shaft 0.315" (8.00mm)
Length - Shaft and Bearing 0.811" (20.60mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Operating Temperature -10°C ~ 50°C
Coil Resistance 0.35 Ohms
Features -
