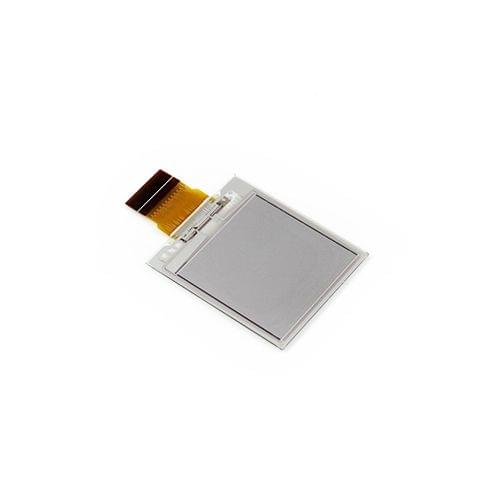

5b1e25a6b6394b09fc54770b 200x200, 1.54inch E-Ink raw display panel, three-color https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1e25a6b6394b09fc54770b/images/5e3bb2142b309e782c8181e8/5e3bb2026fbdfb783177149a/webp/5e3bb2026fbdfb783177149a.jpg

Overview

This is an E-Ink raw display, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 31.8mm × 37.32mm × 1.05mm
  • Display size: 27.6mm × 27.6mm
  • Dot pitch: 0.138 × 0.138
  • Resolution: 200 × 200
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 8s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
TT-WS-13275
in stock INR 951
