Description

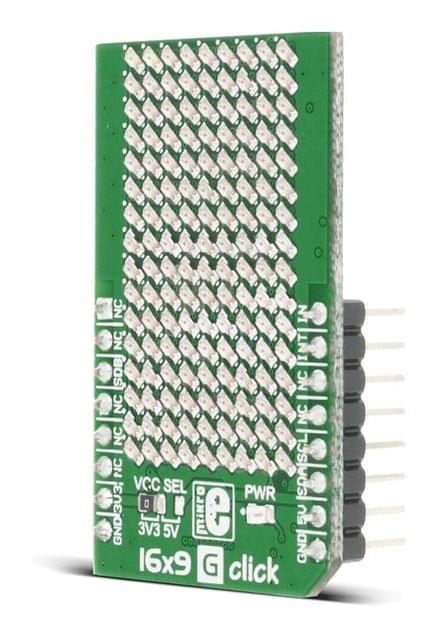

16x9 G click contains a green LED matrix and the IS31FL3731 audio modulated matrix LED driver. The dimension of the LED matrix is 16x9. Each LED can be controlled individually – both for on/off control and light intensity. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over I2C interface and the following mikroBUS™ pins: PWM, INT, CS.
The IS31FL3731 matrix driver
The IS31FL3731 is a compact LED driver for 144 single LEDs. The driver has three operating modes, Picture Mode, Auto Frame Play Mode and Audio Frame Play Mode:
Picture Mode — the driver can store up to 8 frames. In Picture Mode you can show one of these frames at a time.
Auto Frame Play Mode — In this mode you can automatically play the 8 frames in order.
Audio Frame Play Mode —You can play the 8 frames to the rhythm of the music of your choice. The displayed LED frames can be modulated with audio signal intensity. The driver plays the first frame when the value is the smallest and plays the eighth frame when the value is the biggest.
Audio signal - The LED frames can be modulated with the intensity of the audio signal.
Light intensity - It is possible to set the intensity of each frame individually, and to use the intensity setting of frame 1 for all other frames.
Specifications
| Type | LED Matrix |
| Applications | LED display for various hand-held devices, home appliances, IoT devices, etc. |
| On-board modules | IS31FL3731 matrix LED driver |
| Key Features | 16x9 LED matrix, 144 single LEDs, 8 frames memory for animations, Individual blink control, Auto Frame Play Mode, Audio Frame Play Mode |
| Key Benefits | light intensity control, Audio Frame Play Mode |
| Interface | GPIO,I2C |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
- Home
- DEVELOPMENT BOARDS AND IC's
- CLICK BOARDS
- 16x9 G click
16x9 G click
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aa3c80c696d0cb57a5a9002/images/5aa3c80c696d0cb57a5a9003/5aa3c7f2f8a6867b046c0464/5aa3c7f2f8a6867b046c0464.jpg
Description of product
Description
16x9 G click contains a green LED matrix and the IS31FL3731 audio modulated matrix LED driver. The dimension of the LED matrix is 16x9. Each LED can be controlled individually – both for on/off control and light intensity. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over I2C interface and the following mikroBUS™ pins: PWM, INT, CS.
The IS31FL3731 matrix driver
The IS31FL3731 is a compact LED driver for 144 single LEDs. The driver has three operating modes, Picture Mode, Auto Frame Play Mode and Audio Frame Play Mode:
Picture Mode — the driver can store up to 8 frames. In Picture Mode you can show one of these frames at a time.
Auto Frame Play Mode — In this mode you can automatically play the 8 frames in order.
Audio Frame Play Mode —You can play the 8 frames to the rhythm of the music of your choice. The displayed LED frames can be modulated with audio signal intensity. The driver plays the first frame when the value is the smallest and plays the eighth frame when the value is the biggest.
Audio signal - The LED frames can be modulated with the intensity of the audio signal.
Light intensity - It is possible to set the intensity of each frame individually, and to use the intensity setting of frame 1 for all other frames.
Specifications
| Type | LED Matrix |
| Applications | LED display for various hand-held devices, home appliances, IoT devices, etc. |
| On-board modules | IS31FL3731 matrix LED driver |
| Key Features | 16x9 LED matrix, 144 single LEDs, 8 frames memory for animations, Individual blink control, Auto Frame Play Mode, Audio Frame Play Mode |
| Key Benefits | light intensity control, Audio Frame Play Mode |
| Interface | GPIO,I2C |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
