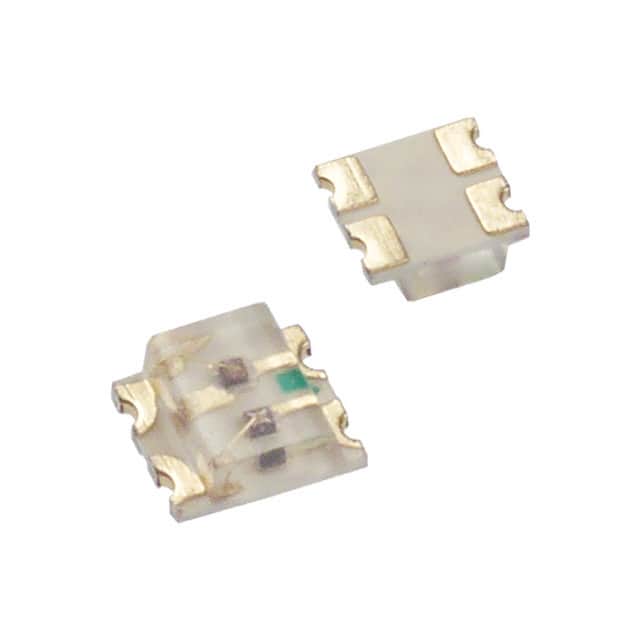

LED RGB DIFFUSED CHIP SMD

Product Attributes:

Series-
Product StatusActive
ColorRed, Green, Blue (RGB)
ConfigurationCommon Anode
Lens ColorWhite
Lens TransparencyDiffused
Millicandela Rating112.5mcd Red, 281mcd Green, 104mcd Blue
Lens StyleRectangle with Flat Top
Lens Size1.15mm x 1.60mm
Voltage - Forward (Vf) (Typ)2.1V Red, 3.35V Green, 3.35V Blue
Current - Test20mA Red, 20mA Green, 20mA Blue
Viewing Angle130°
Mounting TypeSurface Mount
Wavelength - Dominant624nm Red, 525nm Green, 470nm Blue
Wavelength - Peak632nm Red, 520nm Green, 468nm Blue
Features-
Package / Case0606 (1616 Metric)
Supplier Device PackageChip LED
Size / Dimension1.60mm L x 1.60mm W
Height (Max)0.35mm
TT-DKEY-160-2162-2-ND,160-2162-1-ND,160-2162-6-ND
in stockINR
Lite-On Inc.
1 1
Lite-On Inc. 160-2162-2-ND,160-2162-1-ND,160-2162-6-ND

Lite-On Inc. 160-2162-2-ND,160-2162-1-ND,160-2162-6-ND

Sku: TT-DKEY-160-2162-2-ND,160-2162-1-ND,160-2162-6-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED RGB DIFFUSED CHIP SMD

Product Attributes:

Series-
Product StatusActive
ColorRed, Green, Blue (RGB)
ConfigurationCommon Anode
Lens ColorWhite
Lens TransparencyDiffused
Millicandela Rating112.5mcd Red, 281mcd Green, 104mcd Blue
Lens StyleRectangle with Flat Top
Lens Size1.15mm x 1.60mm
Voltage - Forward (Vf) (Typ)2.1V Red, 3.35V Green, 3.35V Blue
Current - Test20mA Red, 20mA Green, 20mA Blue
Viewing Angle130°
Mounting TypeSurface Mount
Wavelength - Dominant624nm Red, 525nm Green, 470nm Blue
Wavelength - Peak632nm Red, 520nm Green, 468nm Blue
Features-
Package / Case0606 (1616 Metric)
Supplier Device PackageChip LED
Size / Dimension1.60mm L x 1.60mm W
Height (Max)0.35mm
