6411b90287e71e474f1634e7 Lumileds 1416-1914-2-ND,1416-1914-1-ND,1416-1914-6-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6411b90387e71e474f1634fd/mfg_l1c1-luxeon.jpg

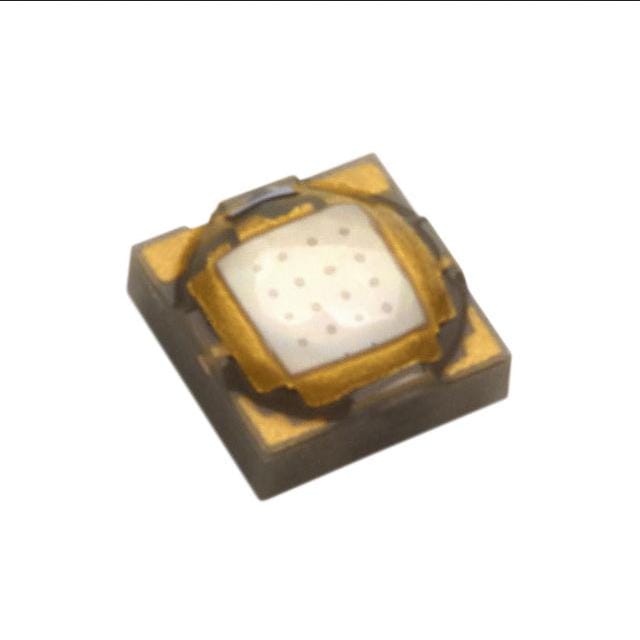

LED LUXEON C GREEN 530NM SMD

Product Attributes:

SeriesLUXEON C
Product StatusActive
ColorGreen
Wavelength530nm (520nm ~ 540nm)
Current - Test350mA
Voltage - Forward (Vf) (Typ)3.05V
Lumens/Watt @ Current - Test108 lm/W
Current - Max1.05A
Luminous Flux @ Current/Temperature115lm (Typ)
Temperature - Test85°C
Viewing Angle170°
Mounting TypeSurface Mount
Package / Case0707 (1919 Metric)
Supplier Device PackageSMD
Size / Dimension0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max)0.059" (1.50mm)
TT-DKEY-1416-1914-2-ND,1416-1914-1-ND,1416-1914-6-ND
in stockINR 326.43
Lumileds
1 1
Lumileds 1416-1914-2-ND,1416-1914-1-ND,1416-1914-6-ND

Lumileds 1416-1914-2-ND,1416-1914-1-ND,1416-1914-6-ND

Sku: TT-DKEY-1416-1914-2-ND,1416-1914-1-ND,1416-1914-6-ND
₹326.43


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED LUXEON C GREEN 530NM SMD

Product Attributes:

SeriesLUXEON C
Product StatusActive
ColorGreen
Wavelength530nm (520nm ~ 540nm)
Current - Test350mA
Voltage - Forward (Vf) (Typ)3.05V
Lumens/Watt @ Current - Test108 lm/W
Current - Max1.05A
Luminous Flux @ Current/Temperature115lm (Typ)
Temperature - Test85°C
Viewing Angle170°
Mounting TypeSurface Mount
Package / Case0707 (1919 Metric)
Supplier Device PackageSMD
Size / Dimension0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max)0.059" (1.50mm)
