Lumileds 1416-1058-2-ND,1416-1058-1-ND,1416-1058-6-ND
Sku: TT-DKEY-1416-1058-2-ND,1416-1058-1-ND,1416-1058-6-ND
₹462.24
Features
- Shipping in 10-12 Working Days
Description of product

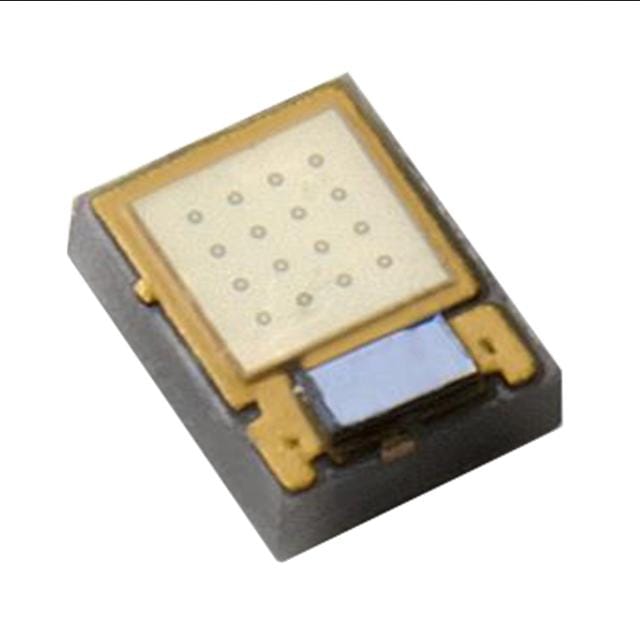

LED LUXEON Z BLUE 450NM SMD
Product Attributes:
| Series | LUXEON Z |
| Product Status | Active |
| Color | Blue |
| Wavelength | 450nm (440nm ~ 460nm) |
| Current - Test | 500mA |
| Voltage - Forward (Vf) (Typ) | 2.85V |
| Lumens/Watt @ Current - Test | - |
| Current - Max | 1A |
| Luminous Flux @ Current/Temperature | 550mW (500mW ~ 600mW) |
| Temperature - Test | 25°C |
| Viewing Angle | 125° |
| Mounting Type | Surface Mount |
| Package / Case | 0705 (1713 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 0.067" L x 0.051" W (1.70mm x 1.30mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
