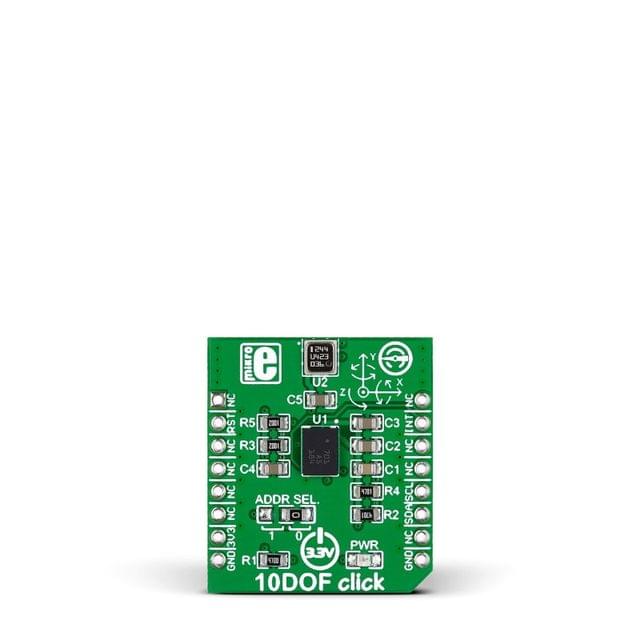

10DOF click is a mikroBUS add-on board for enhancing hardware prototypes with 10DOF functionality (10 degrees of freedom). The click board carries two modules from Bosch: BNO055, a 9-axis absolute orientation sensor and BMP180, a digital pressure sensor. The BNO055 contains 3 sensors: a 3-axis 16-bit gyroscope, a 14-bit 3-axis accelerometer, and a 3-axis magnetometer, as well as a 32-bit ARM® Cortex®-M0 MCU with Bosch Sensortec sensor fusion algorithms. The pressure sensor is based on piezo-resistive technology, enabling high accuracy, linearity and long term stability. 10DOF click communicates with the target board MCU through the mikroBUS™ I2C interface (SCL, SDA), with additional functionality provided by INT and RST pins. Designed to use a 3.3V power supply only.

SPECIFICATION

TypeMotion
Applications10DOF click is a complete inertial-measurement unit which can be used to enhance GPS navigation
(with dead reckoning), but also in robotics, fitness devices, game controllers, tablets and other devices
that need to be aware of their position in space
On-board modulesBosch BNO055 orientation sensor, BMP180 digital pressure sensor
Key FeaturesAcceleration ranges: ±2g/±4g/±8g/±16g, Gyroscope ranges: ±125º/s to ±2000º/s. Magnetometer
field range ±1300µT (x, y-axis), ±2500µT (z-axis). Pressure range: 300-1100hPa (+9000m, -500m relating to sea level)
Key BenefitsMotion-triggered interrupt signal generation
InterfaceGPIO,I2C
Input Voltage3.3V
CompatibilitymikroBUS
Click board sizeS (28.6 x 25.4 mm)
