612349738f7a526b3e96d707 CUI Devices 102-4703-ND //cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/612349748f7a526b3e96d736/webp/mfg_nema08.jpg

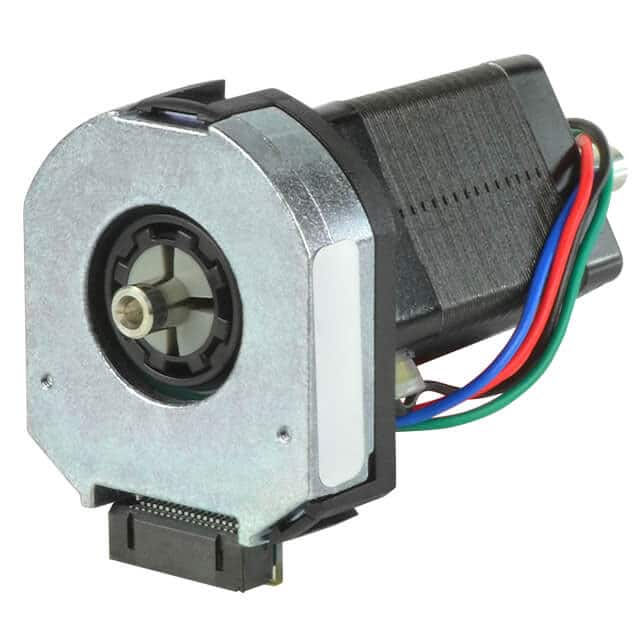

STEPPER MOTOR W/ INCREMENTAL ENC

Product Attributes:

Series NEMA08-AMT112S
Part Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24 ~ 48VDC
Current Rating (Amps) 600 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±0.2%
Torque - Holding (oz-in / mNm) 3 / 21.19
Size / Dimension Square - 0.799" x 0.799" (20.30mm x 20.30mm)
NEMA Frame Size 8
Diameter - Shaft 0.157" (4.00mm)
Length - Shaft and Bearing 0.591" (15.00mm)
Mounting Hole Spacing 0.630" (16.00mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 6.5 Ohms
Features Integrated Encoder
TT-DKEY-102-4703-ND
in stock INR 20456.24695
CUI Devices
1 1

CUI Devices 102-4703-ND

Sku: TT-DKEY-102-4703-ND
₹20,456.25


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR W/ INCREMENTAL ENC

Product Attributes:

Series NEMA08-AMT112S
Part Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24 ~ 48VDC
Current Rating (Amps) 600 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±0.2%
Torque - Holding (oz-in / mNm) 3 / 21.19
Size / Dimension Square - 0.799" x 0.799" (20.30mm x 20.30mm)
NEMA Frame Size 8
Diameter - Shaft 0.157" (4.00mm)
Length - Shaft and Bearing 0.591" (15.00mm)
Mounting Hole Spacing 0.630" (16.00mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 6.5 Ohms
Features Integrated Encoder
