Description

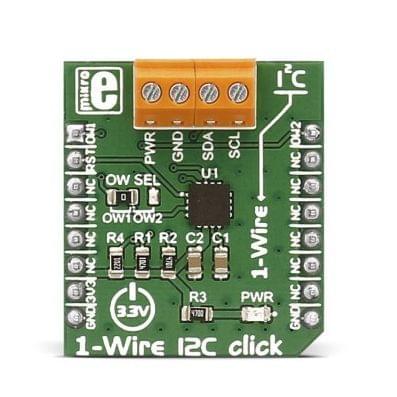

Wire I2C click carries DS28E17 1-Wire-to-I2C master bridge from Maxim Integrated. The click runs on a 3.3V power supply.
It communicates with the target microcontroller over 1-Wire® protocol, using the following pins on the mikroBUS™ line: AN, PWM, RST.
There are two on-board screw terminals used for connecting SCL, SDA, Vcc and GND of the I2C slave. After that, you are able to communicate with that slave through the onboard DS28E17 MCU.
The DS28E17 is a 1-Wire slave to I2C master bridge device that interfaces directly to I2C slaves at standard (100kHz max) or fast (400kHz max). Data transfers serially through the 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS28E17 is guaranteed to have a unique 64-bit ROM registration number that serves as a node address in the 1-Wire network.
Type | 1-wire |
Applications | 1-Wire I2C click can be used to extend the length of I2C lines by converting I2C to 1-wire |
On-board modules | DS28E17 1-Wire-to-I2C master bridge from Maxim Integrated |
Interface | 1-wire,GPIO |
Input Voltage | 3.3V |
Click board size | S (28.6 x 25.4 mm) |
Description
Wire I2C click carries DS28E17 1-Wire-to-I2C master bridge from Maxim Integrated. The click runs on a 3.3V power supply.
It communicates with the target microcontroller over 1-Wire® protocol, using the following pins on the mikroBUS™ line: AN, PWM, RST.
There are two on-board screw terminals used for connecting SCL, SDA, Vcc and GND of the I2C slave. After that, you are able to communicate with that slave through the onboard DS28E17 MCU.
The DS28E17 is a 1-Wire slave to I2C master bridge device that interfaces directly to I2C slaves at standard (100kHz max) or fast (400kHz max). Data transfers serially through the 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS28E17 is guaranteed to have a unique 64-bit ROM registration number that serves as a node address in the 1-Wire network.
Type | 1-wire |
Applications | 1-Wire I2C click can be used to extend the length of I2C lines by converting I2C to 1-wire |
On-board modules | DS28E17 1-Wire-to-I2C master bridge from Maxim Integrated |
Interface | 1-wire,GPIO |
Input Voltage | 3.3V |
Click board size | S (28.6 x 25.4 mm) |
