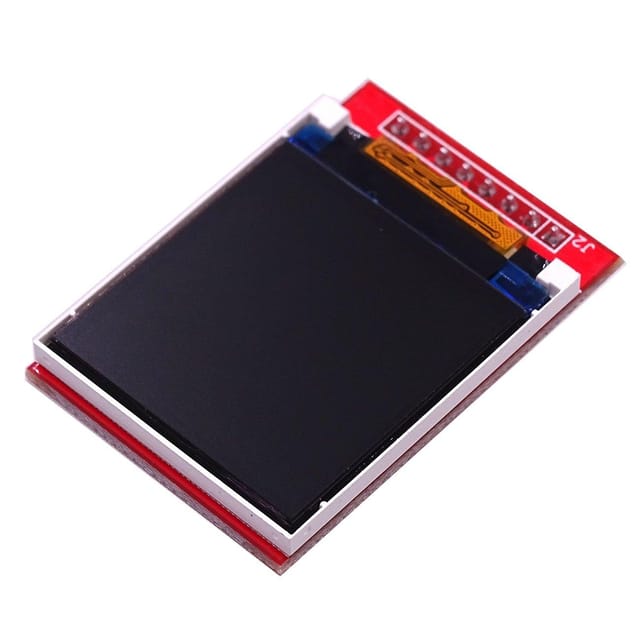

This lovely little display breakout is the best way to add a small, colorful and bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 1.44″ display has 128×128 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 16-bit color using our library code.

This 1.44 inch TFT LCD Color Screen Module SPI Interface has 128 x 128 resolution and 262 colors, it uses SPI interface to communicate with the controller such as Arduino, it is the best upgrading of the Nokia5110.

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

Note: This LCD Screen is not Touch-Screen, for touchscreen displays click here on  Touchscreen Displays

For more displays click below,

LED/LCD Display

Features :

1. TFT color screen, the effect is far better than other small CSTN screen
2. Fully compatible and alternative 5110 interface
3. Onboard LDO, support 5V/3.3V input voltage

Useful Links:

TFT LCD Technology

Package Includes :

1 x 1.44 inch TFT LCD Color Screen Module
