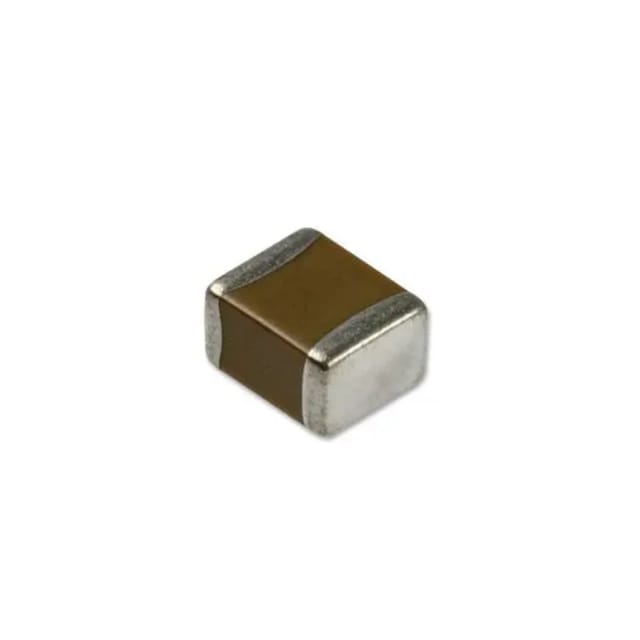

08051C104K4Z2A-KYOCERA AVX-SMD Multilayer Ceramic Capacitor, 0.1 ?F, 100 V, 0805 [2012 Metric], ? 10%, X7R. The AVX FLEXITERM automotive MLCC are multilayer ceramic chip capacitors with X7R dielectric material and flexible terminations. The capacitance value ranges from 0.22nF to 22?F. FLEXITERM is designed to enhance mechanical flexure and temperature cycling performance of a standard ceramic capacitor. The industry standard for flexure is 2mm, FLEXITERM provides up to 5mm of flexure without internal cracks. These capacitors provide improved performance compared to standard termination capacitors. The automotive grade FLEXITERM capacitors provide a design engineer with satisfactory solution for designing PCB?s which may be subject to high levels of board flexure.

Note: Images for reference only. For more technical information, please refer to datasheet in Attachments.

Specifications:

Capacitance:: 0.1?F
Voltage(DC):: 100V
Capacitor Case / Package:: 0805 [2012 Metric]
Capacitance Tolerance:: 10%
Dielectric Characteristic:: X7R
Product Range:: –
Product Length:: 2.01mm
Product Width:: 1.25mm
Capacitor Terminals:: SMD
Operating Temperature Min:: -55?C
Operating Temperature Max:: 125?C
Qualification:: AEC-Q200
MSL:: MSL 1 – Unlimited

Package Includes:

1 x 08051C104K4Z2A-KYOCERA AVX-SMD Multilayer Ceramic Capacitor, 0.1 ?F, 100 V, 0805 [2012 Metric], ? 10%, X7R
