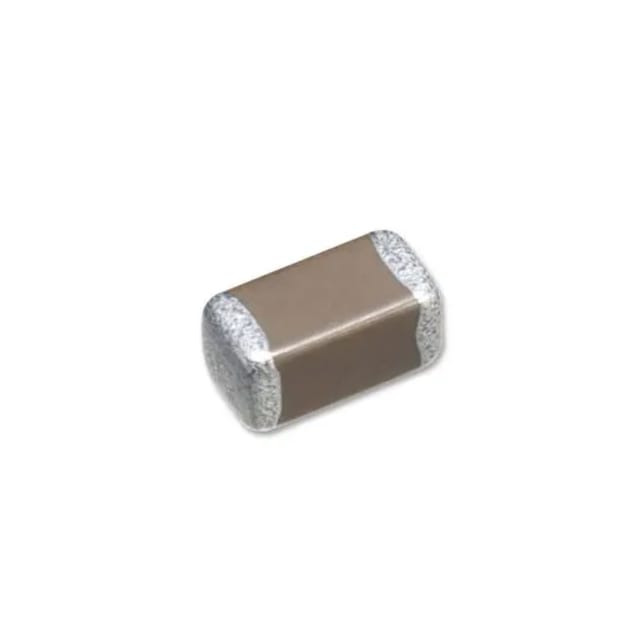

672b6148293c2d0024447882 04025A560JAT2A-KYOCERA AVX-SMD Multilayer Ceramic Capacitor, 56 pF, 50 V, 0402 [1005 Metric], ± 5%, C0G / NP0, AVX 0402 MLCC https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/672b6149293c2d0024447884/718488.png
The AVX multilayer ceramic capacitors with EIA class I, C0G (NP0) dielectric material are highly stable ceramic chip capacitors for general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric.
  • Capacitance value ranges from 0.5pF to 0.1μF
  • EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225 case sizes available
  • Rated DC voltage of 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 500V
  • ±0.10pF, ±0.25pF, ±0.50pF, ±1%, ±2%, ±5% and ±10% tolerance
  • Nickel (Ni) and tin (Sn) plated terminations
  • Load life of 1000h at 125˚C
  • Operating temperature range from -55˚C to 125˚C

Applications: Industrial, Power Management, Consumer Electronics, Portable Devices

Specification:

  1. Capacitance: 56pF
  2. Voltage(DC): 50V
  3. Capacitor Case / Package: 0402 [1005 Metric]
  4. Capacitance Tolerance: 5%
  5. Dielectric Characteristic: C0G / NP0
  6. Product Range: AVX 0402 MLCC
  7. Product Length: 1.02mm

Package Includes:

1 x 04025A560JAT2A-KYOCERA AVX-SMD Multilayer Ceramic Capacitor, 56 pF, 50 V, 0402 [1005 Metric], ± 5%, C0G / NP0, AVX 0402 MLCC

 TT-RB-R110045
in stock INR 3
1 1

04025A560JAT2A-KYOCERA AVX-SMD Multilayer Ceramic Capacitor, 56 pF, 50 V, 0402 [1005 Metric], ± 5%, C0G / NP0, AVX 0402 MLCC

Sku: TT-RB-R110045
Be the first to review this product
₹3
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The AVX multilayer ceramic capacitors with EIA class I, C0G (NP0) dielectric material are highly stable ceramic chip capacitors for general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric.
  • Capacitance value ranges from 0.5pF to 0.1μF
  • EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225 case sizes available
  • Rated DC voltage of 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 500V
  • ±0.10pF, ±0.25pF, ±0.50pF, ±1%, ±2%, ±5% and ±10% tolerance
  • Nickel (Ni) and tin (Sn) plated terminations
  • Load life of 1000h at 125˚C
  • Operating temperature range from -55˚C to 125˚C

Applications: Industrial, Power Management, Consumer Electronics, Portable Devices

Specification:

  1. Capacitance: 56pF
  2. Voltage(DC): 50V
  3. Capacitor Case / Package: 0402 [1005 Metric]
  4. Capacitance Tolerance: 5%
  5. Dielectric Characteristic: C0G / NP0
  6. Product Range: AVX 0402 MLCC
  7. Product Length: 1.02mm

Package Includes:

1 x 04025A560JAT2A-KYOCERA AVX-SMD Multilayer Ceramic Capacitor, 56 pF, 50 V, 0402 [1005 Metric], ± 5%, C0G / NP0, AVX 0402 MLCC
