5dfb2de8516d7162d738fc27 0.96 INCH 80X160 ST7735 OLED DISPLAY SPI/I2C INTERFACE https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5dfb2de8516d7162d738fc27/images/5dfb30609038b762dd96bf12/5dfb30439038b762dd96b893/webp/5dfb30439038b762dd96b893.jpg

Description

This module is a 0.96 inch IPS OLED display module. The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 80x160. OLED is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode.OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

OLEDs basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide. The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer, Emission Layer and the Electron Transporting Layer. By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively.

Specifications

  • Driver: ST7735S

  • Interface: SPI/I2C

  • Display color: RGB, 65K color

  • Resolution: 80x160

  • Backlight: LED

  • Operating voltage: 3.3V

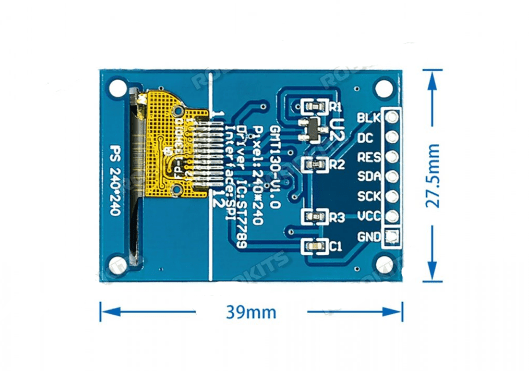

  • Size: 39*27.5*4mm

Interface

  • VCC: Power (3.3V input)

  • GND: Ground

  • DIN: SPI data input

  • CLK: SPI clock input

  • CS: Chip selection, low active

  • DC:    Data/Command selection (high for data, low for command)

  • RST:  Reset, low active

  • BL:    Backlight

Package Includes

  • 1 x 0.96 Inch 80x160 ST7735 OLED Display

TT-RKK-4961
in stockINR 554
1 1
